Universal relay

Universal relay

€15,32
€15,32
Tax included. Shipping €7 for orders under €50. Free shipping for orders over €50.
  • Fully secure checkout
  • Trusted by thousands
  • Rated and reviewed

This 12V/40A automotive relay kit with a dedicated socket is designed for applications such as lighting ignition lock and car alarm systems. The relay features a mounting hole for easy installation. The kit is manufactured using high-quality materials to ensure long-term and safe operation.

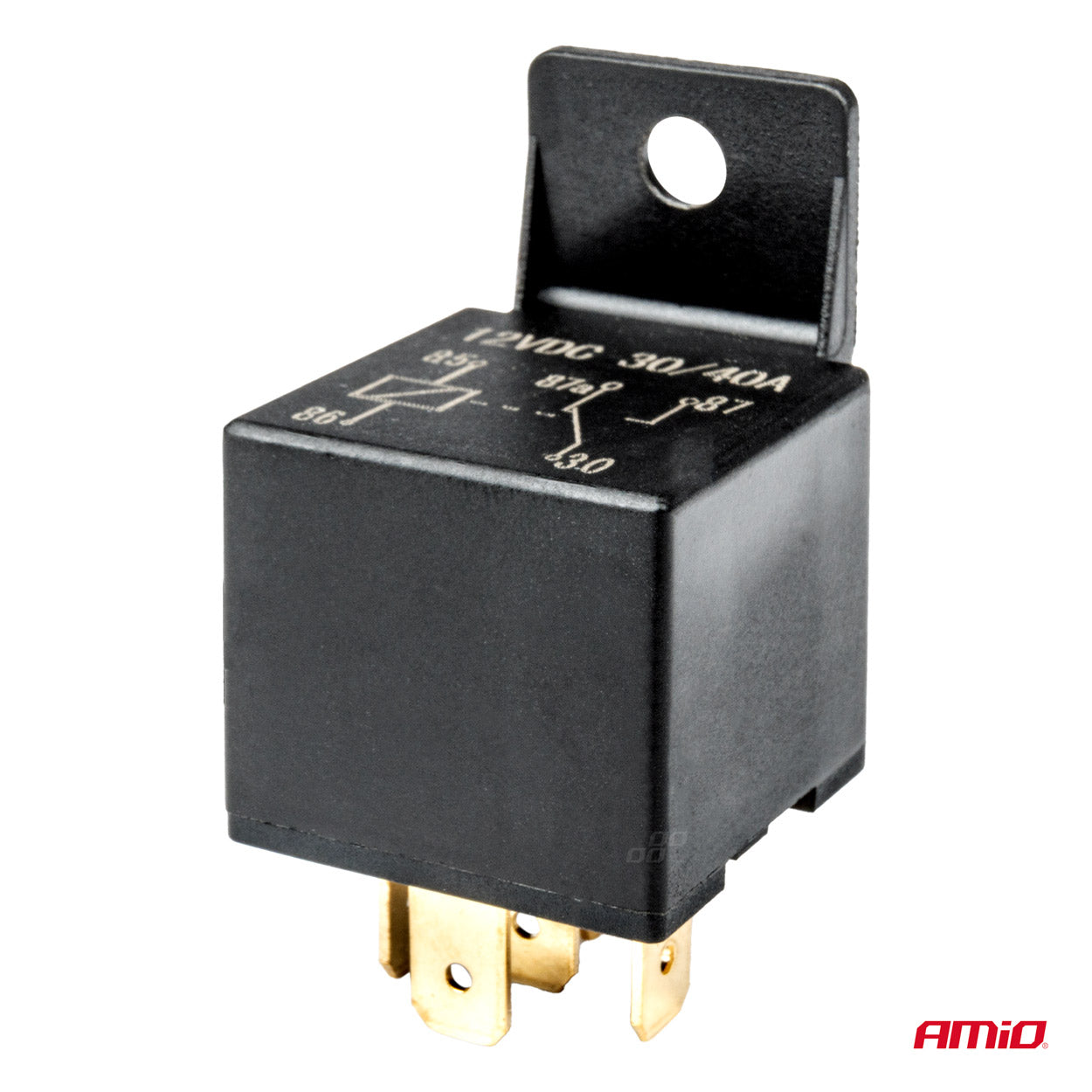

Relay specifications:

Power supply voltage: 12V
Maximum current: 40A
Coil resistance: 82?
Number of connectors: 5
Connector width: 6.3mm
Dimensions: 28.5x28.5x25mm
Mounting bracket: built-in

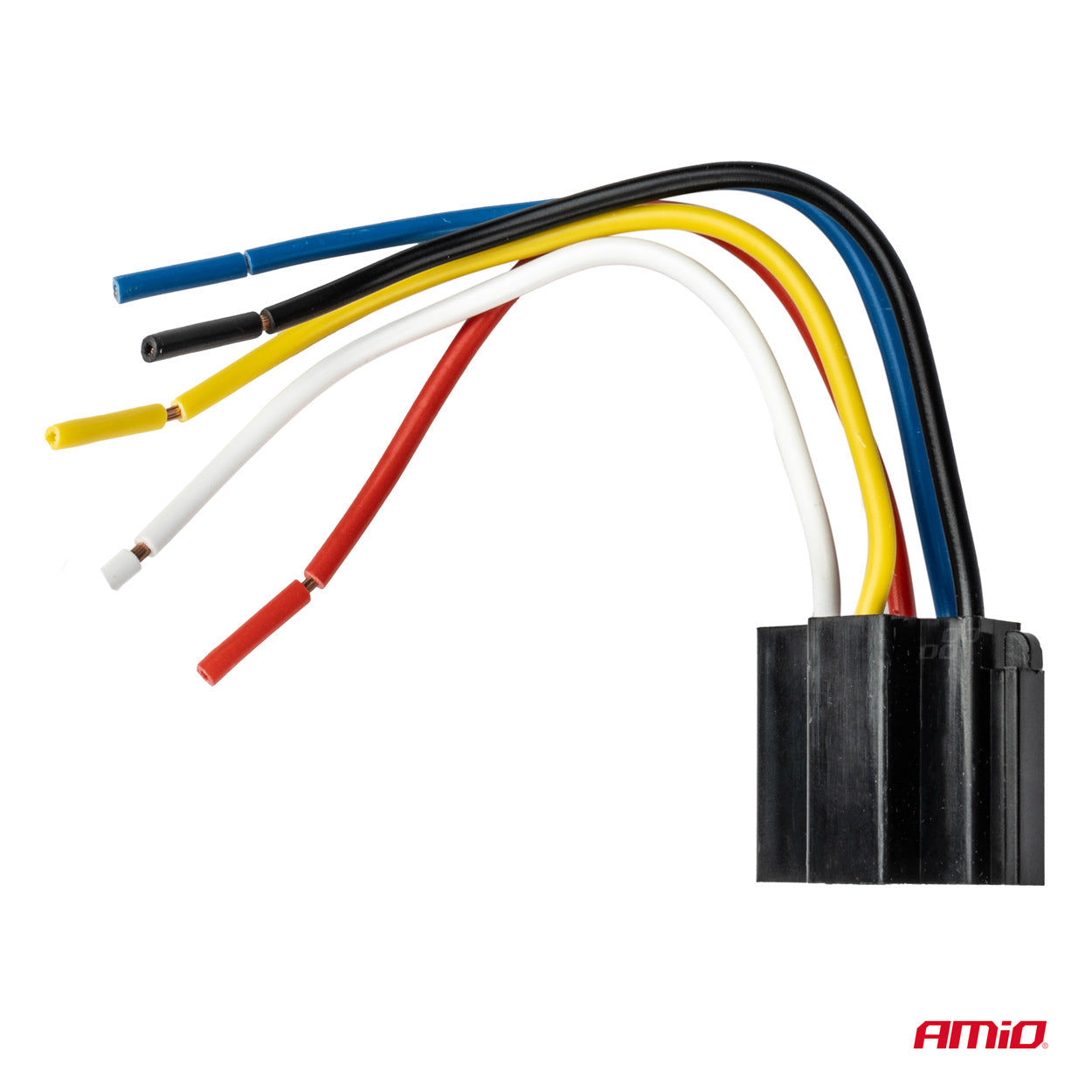

Socket specifications:

Number of wires: 5
Cable Specifications: 3-16AWG 2-18AWG
Cable colors: red black yellow white blue
Cable length: 14.5 cm

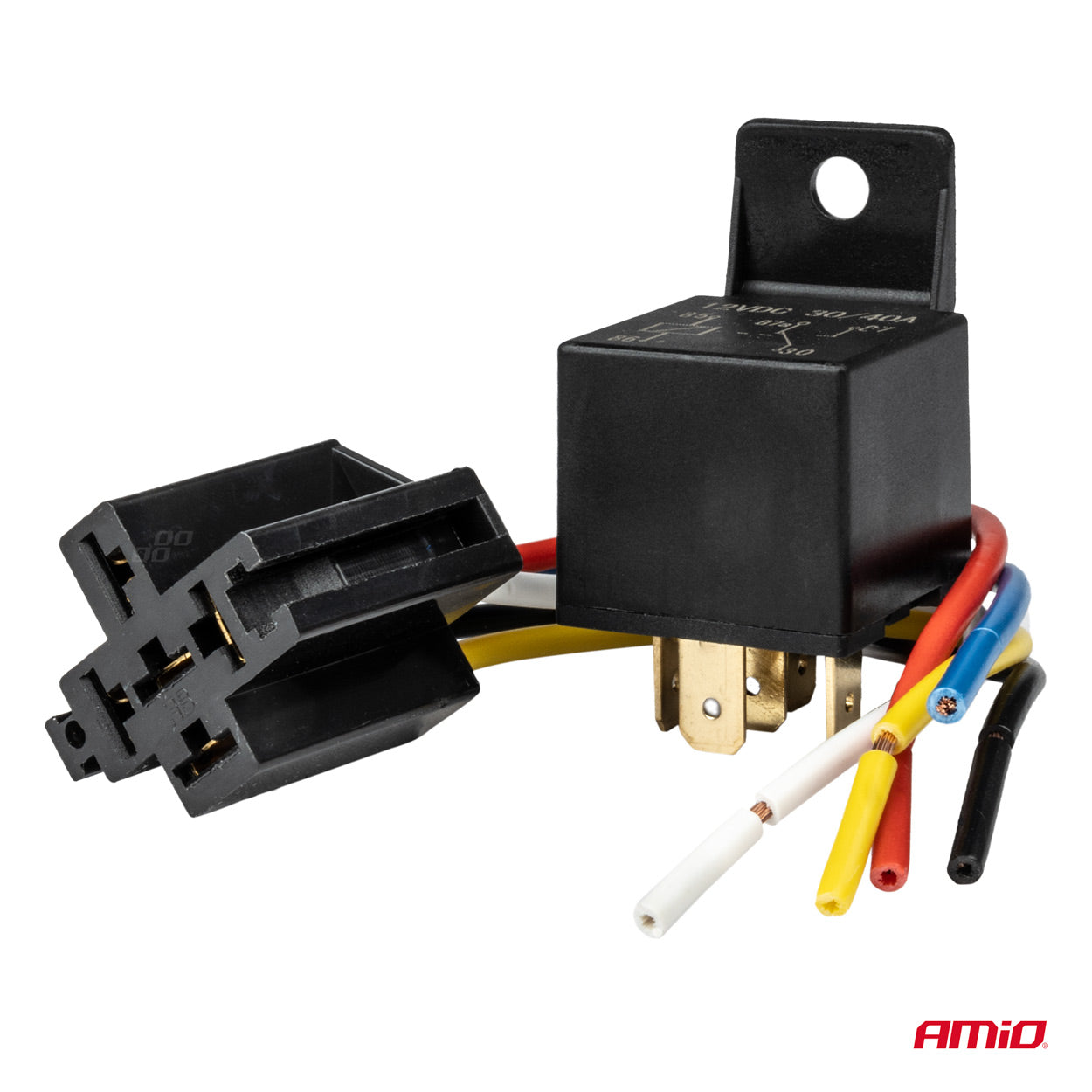

Set contents:
Relay: 1 pc
Socket with wiring: 1 pc

SKU number: AM03510
